RCPCE Duplex Two Stage Electric Air Compressors | Industrial 120 Gallon
Engineered for maximum production and continuous industrial performance, the RCPCE Duplex Two Stage Electric Air Compressors are designed for commercial shops, automotive service centers, manufacturing facilities, and industrial operations where compressed air is a required utility. Featuring dual compressor pump systems, industrial low RPM motors, and a massive 120 gallon ASME coded receiver tank, these horizontal air compressor systems are built to deliver reliable high volume compressed air for demanding multi tool and continuous use environments.
Key Features:
• Industrial duplex two stage electric air compressor system.
• Horizontal 120 gallon ASME coded receiver tank design.
• Two stage cast iron compressor pumps for high pressure performance.
• Splash lubricated compressor pump systems.
• Stainless steel braided discharge hoses.
• Large canister intake filters for improved airflow and filtration.
• Oil level sight indicators for simplified maintenance monitoring.
• Industrial low RPM electric motors for long service life.
• Magnetic motor starters with thermal overload protection.
• Heavy duty powder coated steel construction.
• Heavy duty 3⁄16 inch steel base plate reduces vibration during operation.
• Totally enclosed powder coated belt guard for added durability and protection.
• Three position selector switch with compressor lead motor pump alternation.
• Automatic alternating compressor operation balances system wear.
• ASME safety valves included.
• Tank pressure gauge and integrated hour meter included.
• Large fly wheel design improves cooling efficiency.
• Intake filter and silencer system reduces operating noise.
• Tank shut off valve included.
• Designed for automotive shops, industrial facilities, manufacturing operations, and continuous duty commercial air systems.
Available Models & Specifications
5 HP Duplex Models
ACD-23105-120H
• 5.0 HP
• 120 Gallon Horizontal Tank
• 36.0 CFM @ 175 PSI
• 860 Pump RPM
• 230V / 46.0A / 1 Phase
• Dimensions: 74 x 26.5 x 58 in.
• Bolt Down Dimensions: 34.5 x 23.5 in.
• Ship Weight: 920 lb.
• Net Weight: 841 lb.
ACD-20305-120H
• 5.0 HP
• 120 Gallon Horizontal Tank
• 36.0 CFM @ 175 PSI
• 860 Pump RPM
• 200V / 32.2A / 3 Phase
• Dimensions: 74 x 26.5 x 58 in.
• Bolt Down Dimensions: 34.5 x 23.5 in.
• Ship Weight: 920 lb.
• Net Weight: 841 lb.
ACD-23305-120H
• 5.0 HP
• 120 Gallon Horizontal Tank
• 36.0 CFM @ 175 PSI
• 860 Pump RPM
• 230V / 27.6A / 3 Phase
• Dimensions: 74 x 26.5 x 58 in.
• Bolt Down Dimensions: 34.5 x 23.5 in.
• Ship Weight: 920 lb.
• Net Weight: 841 lb.
ACD-46305-120H
• 5.0 HP
• 120 Gallon Horizontal Tank
• 36.0 CFM @ 175 PSI
• 860 Pump RPM
• 460V / 13.8A / 3 Phase
• Dimensions: 74 x 26.5 x 58 in.
• Bolt Down Dimensions: 34.5 x 23.5 in.
• Ship Weight: 920 lb.
• Net Weight: 841 lb.
7.5 HP Duplex Models
ACD-23175-120H
• 7.5 HP
• 120 Gallon Horizontal Tank
• 46.4 CFM @ 175 PSI
• 1250 Pump RPM
• 230V / 62.0A / 1 Phase
• Dimensions: 74 x 26.5 x 58 in.
• Bolt Down Dimensions: 34.5 x 23.5 in.
• Ship Weight: 900 lb.
• Net Weight: 821 lb.
ACD-20375-120H
• 7.5 HP
• 120 Gallon Horizontal Tank
• 46.4 CFM @ 175 PSI
• 1250 Pump RPM
• 200V / 46.0A / 3 Phase
• Dimensions: 74 x 26.5 x 58 in.
• Bolt Down Dimensions: 34.5 x 23.5 in.
• Ship Weight: 900 lb.
• Net Weight: 821 lb.
ACD-23375-120H
• 7.5 HP
• 120 Gallon Horizontal Tank
• 46.4 CFM @ 175 PSI
• 1250 Pump RPM
• 230V / 40.0A / 3 Phase
• Dimensions: 74 x 26.5 x 58 in.
• Bolt Down Dimensions: 34.5 x 23.5 in.
• Ship Weight: 900 lb.
• Net Weight: 821 lb.
ACD-46375-120H
• 7.5 HP
• 120 Gallon Horizontal Tank
• 46.4 CFM @ 175 PSI
• 1250 Pump RPM
• 460V / 20.0A / 3 Phase
• Dimensions: 74 x 26.5 x 58 in.
• Bolt Down Dimensions: 34.5 x 23.5 in.
• Ship Weight: 900 lb.
• Net Weight: 821 lb.
10 HP Duplex Models
ADD-23110-120H
• 10.0 HP
• 120 Gallon Horizontal Tank
• 68.4 CFM @ 175 PSI
• 990 Pump RPM
• 230V / 78.0A / 1 Phase
• Dimensions: 74 x 26.5 x 58 in.
• Bolt Down Dimensions: 34.5 x 23.5 in.
• Ship Weight: 1200 lb.
• Net Weight: 1121 lb.
ADD-20310-120H
• 10.0 HP
• 120 Gallon Horizontal Tank
• 68.4 CFM @ 175 PSI
• 990 Pump RPM
• 200V / 61.6A / 3 Phase
• Dimensions: 74 x 26.5 x 58 in.
• Bolt Down Dimensions: 34.5 x 23.5 in.
• Ship Weight: 1200 lb.
• Net Weight: 1121 lb.
ADD-23310-120H
• 10.0 HP
• 120 Gallon Horizontal Tank
• 68.4 CFM @ 175 PSI
• 990 Pump RPM
• 230V / 53.6A / 3 Phase
• Dimensions: 74 x 26.5 x 58 in.
• Bolt Down Dimensions: 34.5 x 23.5 in.
• Ship Weight: 1200 lb.
• Net Weight: 1121 lb.
ADD-46310-120H
• 10.0 HP
• 120 Gallon Horizontal Tank
• 68.4 CFM @ 175 PSI
• 990 Pump RPM
• 460V / 26.8A / 3 Phase
• Dimensions: 74 x 26.5 x 58 in.
• Bolt Down Dimensions: 34.5 x 23.5 in.
• Ship Weight: 1200 lb.
• Net Weight: 1121 lb.15 HP Duplex Models
AED-20315-120H
• 15.0 HP
• 120 Gallon Horizontal Tank
• 93.0 CFM @ 175 PSI
• 810 Pump RPM
• 200V / 88.0A / 3 Phase
• Dimensions: 74 x 26.5 x 58 in.
• Bolt Down Dimensions: 34.5 x 23.5 in.
• Ship Weight: 1550 lb.
• Net Weight: 1471 lb.
AED-23315-120H
• 15.0 HP
• 120 Gallon Horizontal Tank
• 93.0 CFM @ 175 PSI
• 810 Pump RPM
• 230V / 76.0A / 3 Phase
• Dimensions: 74 x 26.5 x 58 in.
• Bolt Down Dimensions: 34.5 x 23.5 in.
• Ship Weight: 1550 lb.
• Net Weight: 1471 lb.
AED-46315-120H
• 15.0 HP
• 120 Gallon Horizontal Tank
• 93.0 CFM @ 175 PSI
• 810 Pump RPM
• 460V / 38.0A / 3 Phase
• Dimensions: 74 x 26.5 x 58 in.
• Bolt Down Dimensions: 34.5 x 23.5 in.
• Ship Weight: 1550 lb.
• Net Weight: 1471 lb.
Available Options & Accessories
Optional Upgrades
• Vibration isolator pads reduce vibration during operation.
• Electric tank drain automatically removes moisture from the compressor tank.
• Pneumatic tank drain automatically removes moisture from the compressor tank.
• Low oil monitor prevents startup when oil levels fall below safe operating levels.
• After cooler systems remove up to 65% of moisture from discharged compressed air and reduce outlet temperature to within 10° of ambient conditions.
Available Accessories
• Replacement pump options available for ACD, ADD, and AED model platforms.

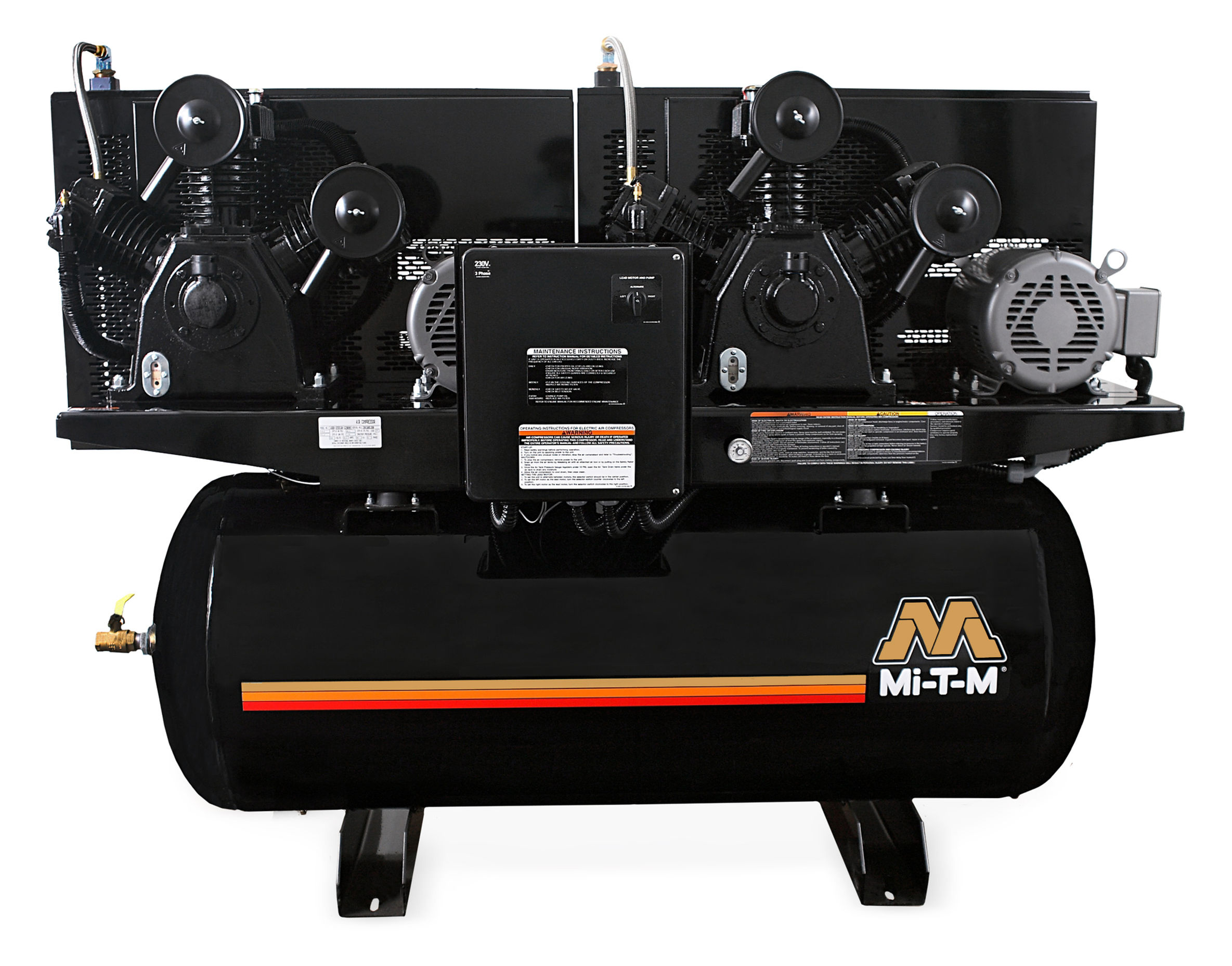

Model Shown - ADD-23310-120H
