RCPCE Diesel & Oil Fired Hot Water Pressure Washer Heater Module | HHM Series Co
The RCPCE HHM Series Heater Module is designed to convert existing cold water pressure washers into powerful hot water cleaning systems whenever hot water performance is needed. Built for commercial and industrial cleaning applications, the HHM Series combines rugged construction, reliable diesel or oil fired heating performance, and portable mobility for fleet washing, equipment cleaning, agriculture, industrial maintenance, and heavy duty wash operations.
Key Features:
• Converts cold water pressure washers into hot water pressure washer systems.
• Diesel and oil fired hot water heater module platform.
• Wrinkle finish powder coated steel frame assembly.
• Corrosion resistant stainless steel coil wrap.
• 13 inch flat free tires for portability and maneuverability.
• Compatible with No. 1 fuel oil, No. 2 fuel oil, diesel, or kerosene fired burner systems.
• Burner system not approved for bio fuel applications.
• Heavy duty horizontal Schedule 80 pipe coil heat exchanger.
• 35 foot power cord with integrated GFCI protection.
• Adjustable thermostat for precise temperature control.
• Maximum outlet temperature of 250°F.
• Provides up to 150°F temperature rise at 4.0 GPM.
• Includes 12 foot x ⅜ inch jumper hose for connecting to existing pressure washers.
• Designed for commercial and industrial hot water cleaning applications.
Available Models & Specifications
HHM Series Heater Module
HHM-3506-0E10
• 3500 PSI
• 6.0 GPM
• 115V / 1Ø / 3.2A
• Burner Fuel Consumption: 2.76 GPH
• Diesel BTU Output: 386,400
• Dimensions: 56.5 x 30 x 41.5 in.
• Ship Weight: 543 lb.
• Net Weight: 423 lb.
Available Options & Accessories
Optional Upgrades
• Skid feet option available for stationary applications.
Accessories
• Stack adapter allows installation of 8 inch flue pipe to boiler exhaust port.
• Gasket kit available for stack adapter installation and sealing.

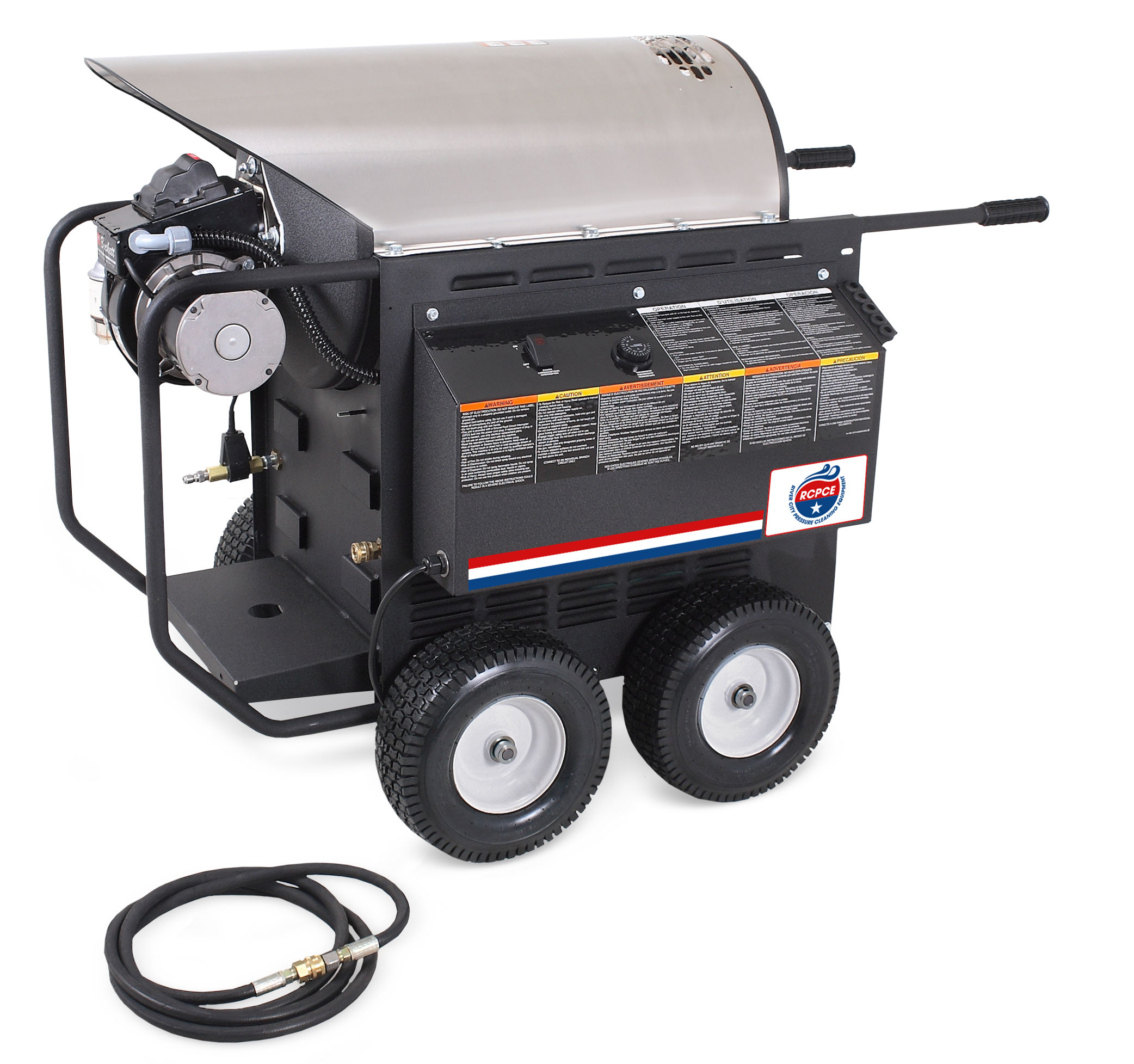

Model Shown - HHM-3506-0E10
